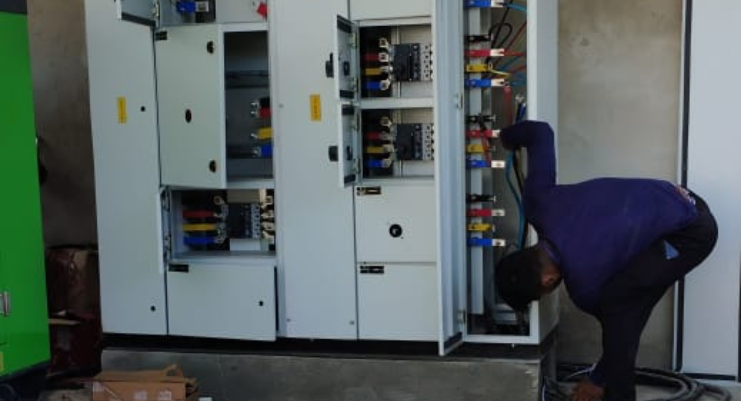

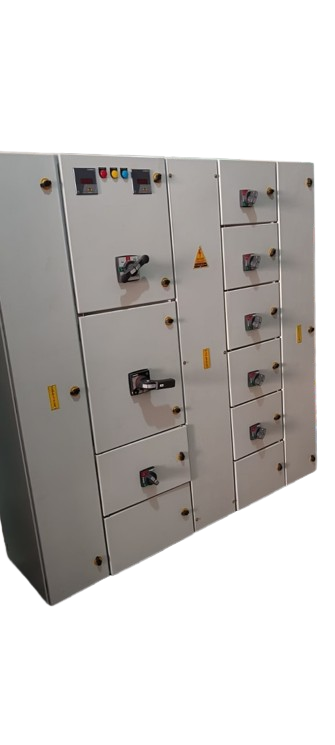

MCCB Panel: Robust Protection for High-Load Electrical Systems

A Molded Case Circuit Breaker (MCCB) Panel is a crucial element in modern electrical infrastructure, engineered to provide reliable protection for circuits in high-load environments. Integrated with MCCBs, these panels safeguard systems from overloads, short circuits, and other electrical faults, making them ideal for industrial facilities, commercial buildings, and critical infrastructure projects.

What is an MCCB?

MCCBs are heavy-duty circuit breakers with current ratings typically ranging from 15A to 2,500A. Unlike standard circuit breakers, MCCBs are designed for larger, more demanding applications. They detect excess current caused by electrical faults and immediately disconnect the supply to prevent equipment damage, fire hazards, or system failure.

Overall, MCC panels play a pivotal role in modern industrial automation, providing reliability, safety, and operational efficiency in motor control systems.

Key Features of MCCB Panels

1. High Current Handling Capacity

Designed for demanding applications, MCCB panels manage large power loads efficiently—perfect for industrial plants and commercial facilities with significant energy requirements.

2. Adjustable Trip Settings

MCCBs offer customizable trip settings, allowing engineers to fine-tune the protection thresholds to meet specific operational needs and enhance system safety.

3. Dual Protection Mechanism

Each MCCB provides thermal protection against prolonged overloads and magnetic protection against sudden surges, ensuring comprehensive fault coverage.

4. Remote Monitoring and Control

Advanced MCCB panels support real-time monitoring and remote operation, enabling faster fault detection, diagnostics, and response—critical for large-scale operations.

5. Compact and Modular Design

MCCB panels are space-efficient and easy to integrate into existing systems. Their modular nature supports quick installation, upgrades, and maintenance.

6. Durable and Low Maintenance

Built to withstand harsh industrial environments, MCCB panels offer long service life and require minimal upkeep, translating to long-term cost savings.
